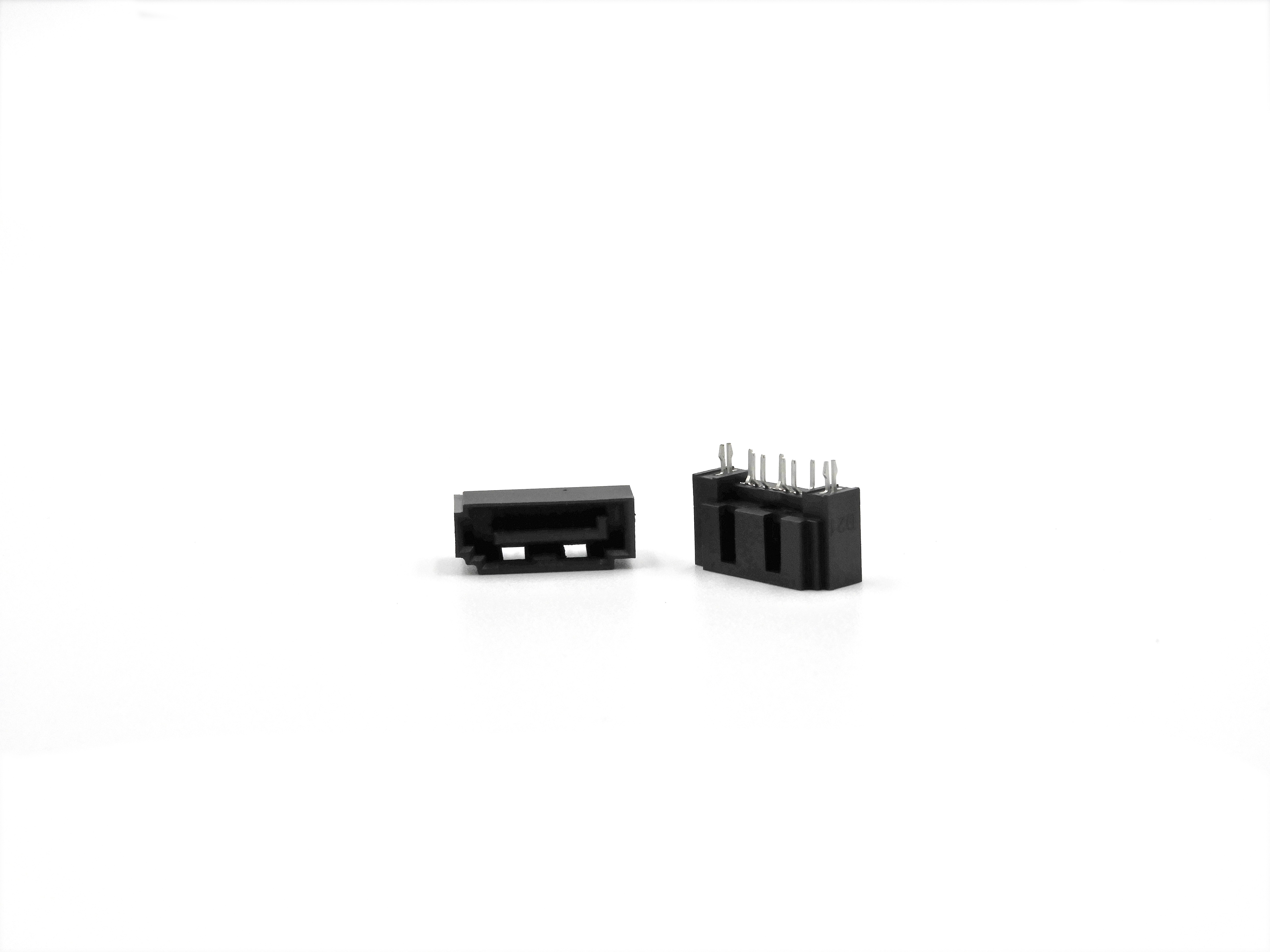

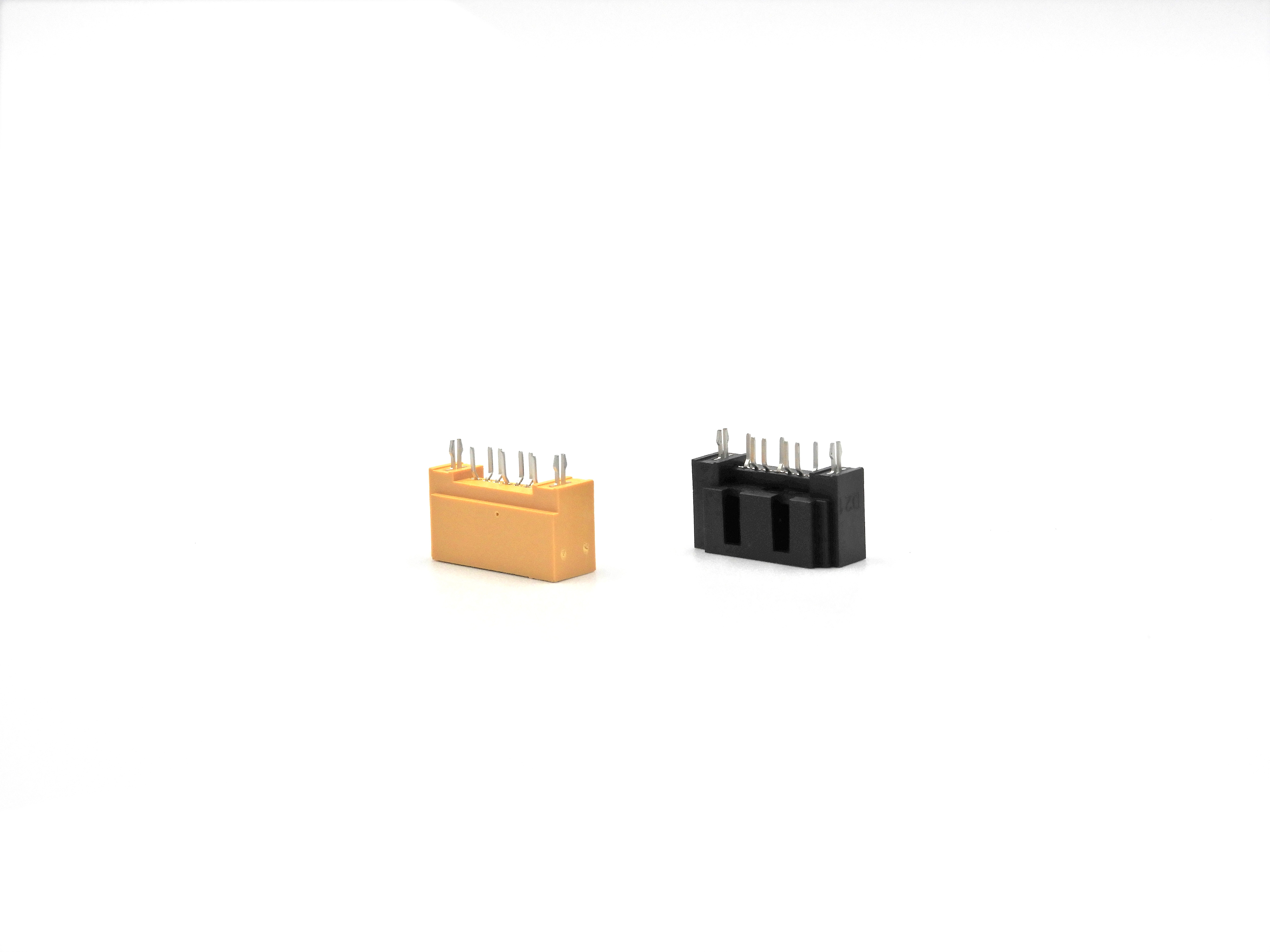

WATM-07ABN4A2B8UW_SATA-7PIN, Vertical , DIP A type

SATA-7PIN, Vertical , DIP A type

P/N: WATM-07ABN4A2B8UW

Material
Body: Nylon46, UL 94V-0

Contact: Brass

Plating: Au plating on contact area

             Sn(100u" Min.) plating on solder tail

             Ni(40u'' Min.) underplating overall

Harpoon: Brass

Plating: Sn(100u" Min.) plating on solder tail

             Ni(50u'' Min.) underplating overall

Mechanical

Insertion Force: 45N Max.

Withdrawal Force: 10N Min.

Durability: 500 Cycles

Electrical Specification

Current Rating: 1.5 Ampere per contact

Contact Resistance: 30 mΩ Max.

Insulation Resistance: 100 MΩ Min.

Dielectric Withstanding Voltage: 500 VAC

Environmental

Operating Temperature: -55°C to +85°C
