WDPC-20F1C3PU3_DP-20 PIN, Plug, with cover for cable assembly use

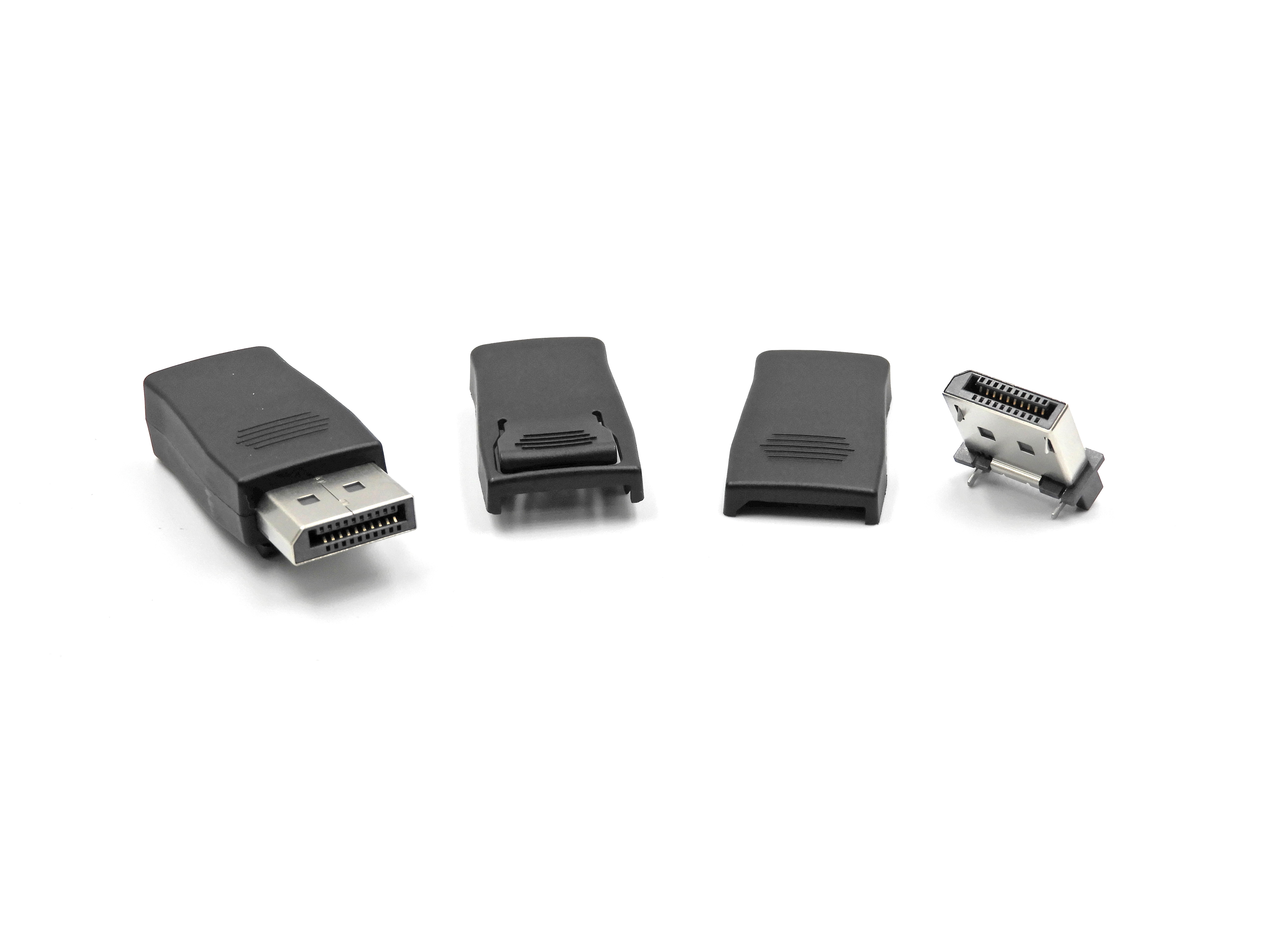

DP-20 PIN, Plug, with cover for cable assembly use

P/N: WDPC-20F1C3PU3

Material
Housing & Plug: LCP, UL 94V-0

Shield: Brass

Plating: Ni(40u'' Min.) Plating

Contact: Phosphor Bronze

Plating: Au plating on contact area

             Sn(100u" Min.) plating on solder tail

             Ni(40u'' Min.) underplating overall

Spring: Stainless Steel

Electrical Specification

Current Rating: 0.5 Ampere per contact

Contact Resistance: 30 mΩ Max.

Insulation Resistance: 100 MΩ Min.

Dielectric Withstanding Voltage: 500 VAC

Operation Voltage: 40 VAC Max.

Environmental

Operating Temperature: -20°C to +85°C
