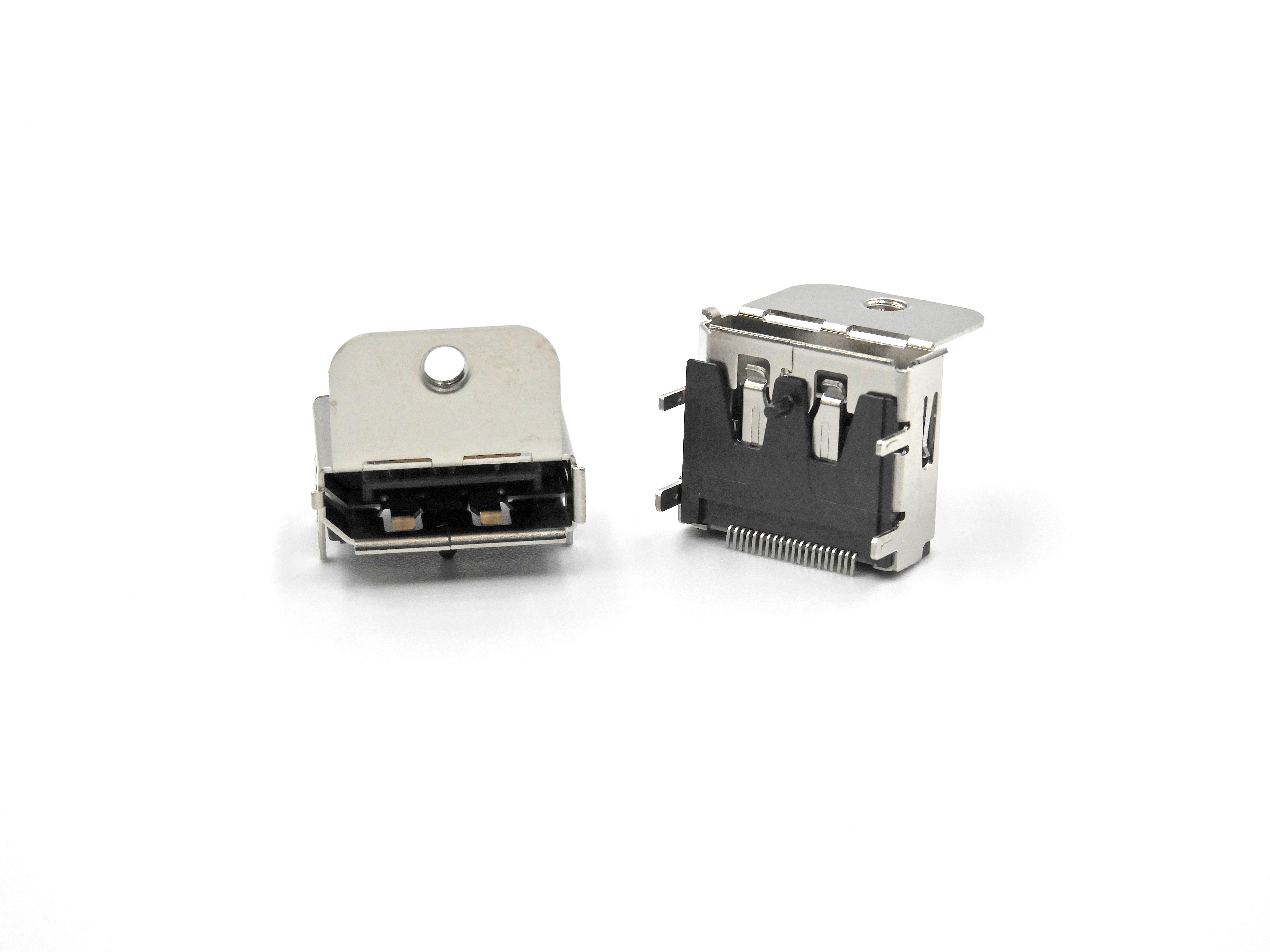

WDPE-20F3L1BFH3_DP-20 PIN, R/A, SMT type with Flange

DP-20 PIN, R/A, SMT type with Flange

P/N: WDPE-20F3L1BFH3

Material
Housing: LCP, UL 94V-0

Shield: Brass

Plating: Ni(40u'' Min.) Plating

Contact: Brass

Plating: Au plating on contact area

             Sn(100u" Min.) plating on solder tail

             Ni(40u'' Min.) underplating overall

Electrical Specification

Current Rating: 0.5 Ampere per contact

Contact Resistance: 30 mΩ Max.

Insulation Resistance: 100 MΩ Min.

Dielectric Withstanding Voltage: 500 VAC

Operation Voltage: 40 VAC Max.

Mechanical

Female Screw Lock Torque: 3Kgf-cm Max.

Environmental

Operating Temperature: -20°C to +85°C
