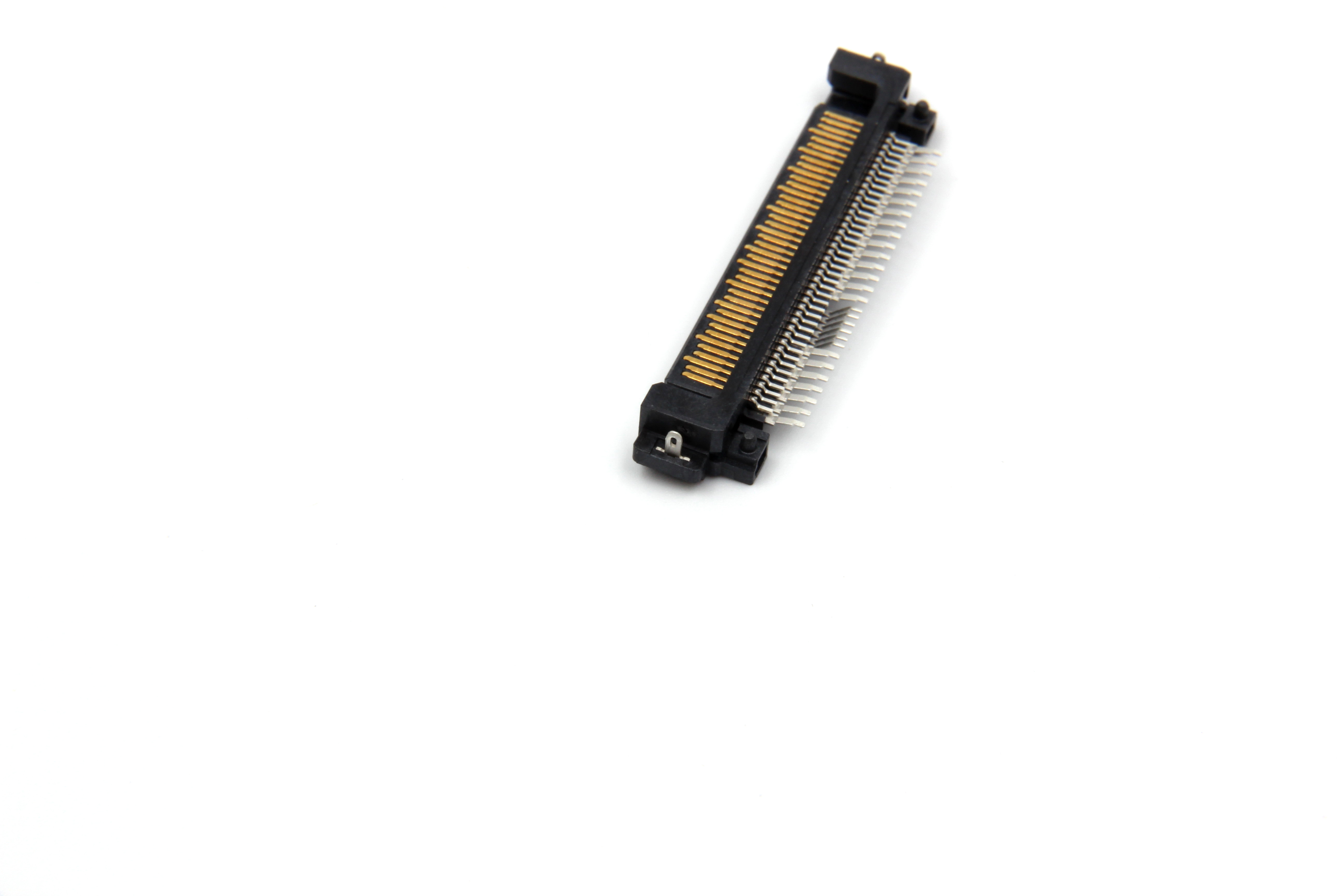

WSFM-68F1L1BHW5_SAS PCIe 68 PIN (SFF-8639) Male, R/A, SMT (Sunk type)

SAS PCIe 68 PIN (SFF-8639) Male, R/A, SMT (Sunk type)

P/N: WSFM-68F1L1BHW5

Material
Housing: LCP, UL 94V-0

Contact: Brass

Plating: Au plating on contact area

             Sn(100u" Min.) plating on solder tail

             Ni(50u'' Min.) underplating overall

Harpoon: Brass

Plating: Sn(100u" Min) plating on solder tail

             Ni(50u" Min.) underplating overall

Mechanical

Insertion Force: 59N Max.

Withdrawal Force: 6N Min.

Durability: 500 cycles

Electrical Specification

Current Rating: 1.5 Ampere per contact

Contact Resistance: 30 mΩ max.

Insulation Resistance: 100 MΩ min.

Dielectric Withstanding Voltage: 500 VAC

Environmental

Operating Temperature: 0°C to +55°C
