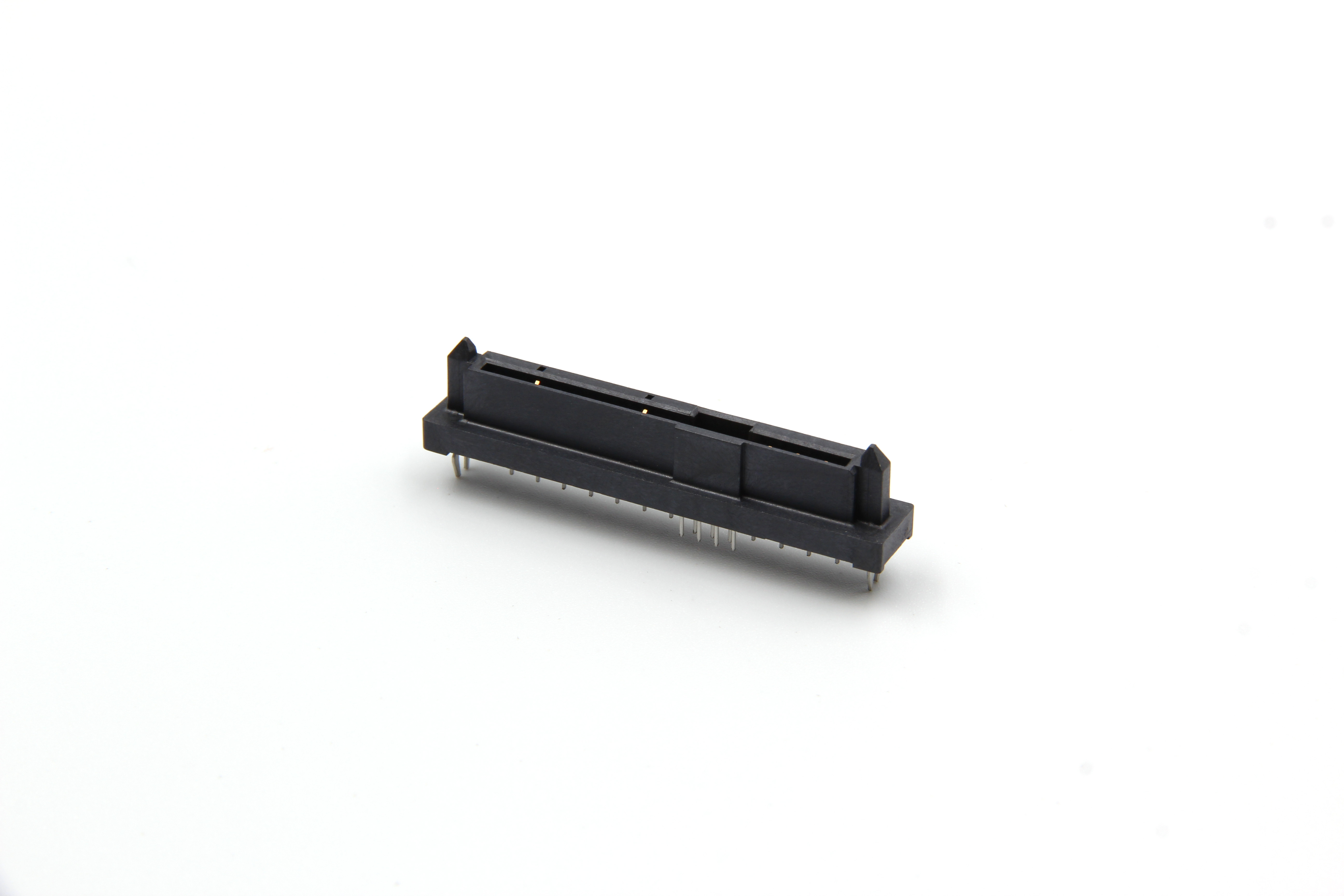

WSAF-29F2L1PU4_SAS-29 PIN, Vertical, DIP type (Double Row)

SAS-29 PIN, Vertical,  DIP type (Double Row)

P/N: WSAF-29F2L1PU4

Material
Housing: LCP, UL 94V-0

Contact: Phosphor Bronze

Plating: Au plating on contact area

             Sn(100u" Min.) plating on solder tail

             Ni(40u" Min.) underplating overall

Harpoon: Brass

Plating: Sn(100u" Min.) plating on solder tail

             Ni(40u" Min.) underplating overall

Mechanical

Insertion Force: 25N Max.

Withdrawal Force: 5N Min.

Durability: 500 Cycles

Electrical Specification

Current Rating: 1.5 Ampere per contact

Contact Resistance: 30 mΩ Max.

Insulation Resistance: 1000 MΩ Min.

Dielectric Withstanding Voltage: 500 VAC

Environmental

Operating Temperature: 0°C to +55°C
