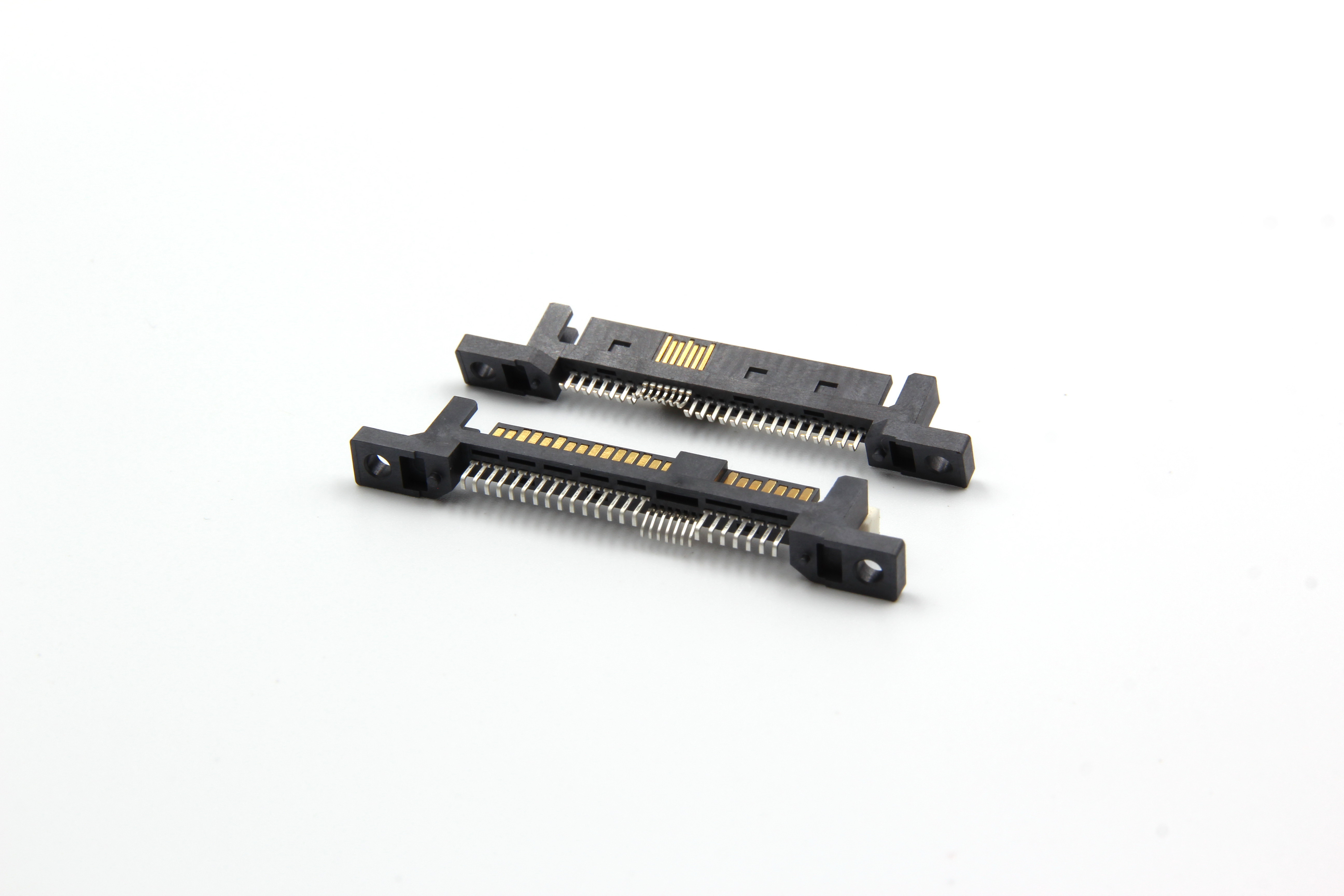

WSAM-29F7L1BU3_SAS-29 PIN, Vertical, SMT (Screw type)

SAS-29 PIN, Vertical, SMT  (Screw type)

P/N: WSAM-29F7L1BU3

Material
Housing: LCP, UL 94V-0

Contact: Brass

Plating: Au plating on contact area

             Sn(100u" Min.) plating on solder tail

             Ni(40u" Min.) underplating overall

Mechanical

Insertion Force: 25N Max.

Withdrawal Force: 5N Min.

Durability: 500 Cycles

Electrical Specification

Current Rating: 1.5 Ampere per contact

Contact Resistance: 30 mΩ Max.

Insulation Resistance: 1000 MΩ Min.

Dielectric Withstanding Voltage: 500 VAC

Environmental

Operating Temperature: 0°C to +55°C
